Dryer Parts

Dryer drum belt, length 88.75" x width 1/4". If the drum does not turn, but you can hear the motor running then there is a good chance the belt has broken.

Dryer rear drum bearing kit. The holes in the metal plate are not threaded. Use the self tapping screws in the kit to thread the plate. If the dryer is noisy then the rear bearing could be worn and require replacement.

Dryer drum drive belt, 5 rib

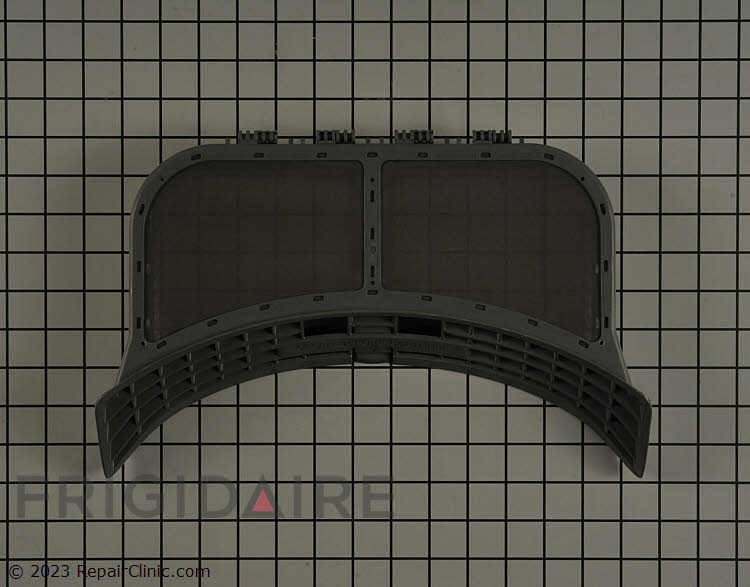

Lint filter assembly. Part has been redesigned. If you are replacing this filter you may also need to replace housing as well. Please see model diagram for correct housing.

This Frigidaire heating element assembly is a genuine replacement part for dryers, ensuring smooth operation and perfectly dry clothes. Compatible with various models.

Dryer drum glide. These drum glides help to support the front of the dryer drum as it rotates. Sold individually. It is recommended to replace both at one time.

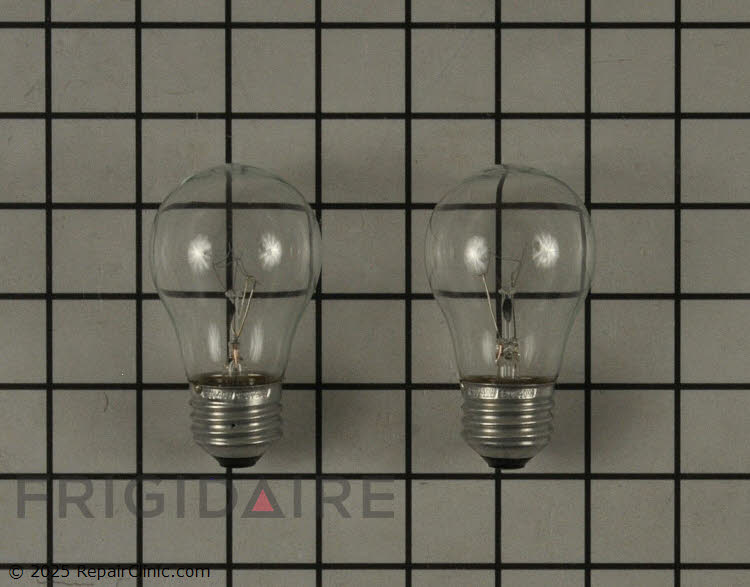

Appliance light bulbs (2 pack).

-40 Watts
*No longer Frosted

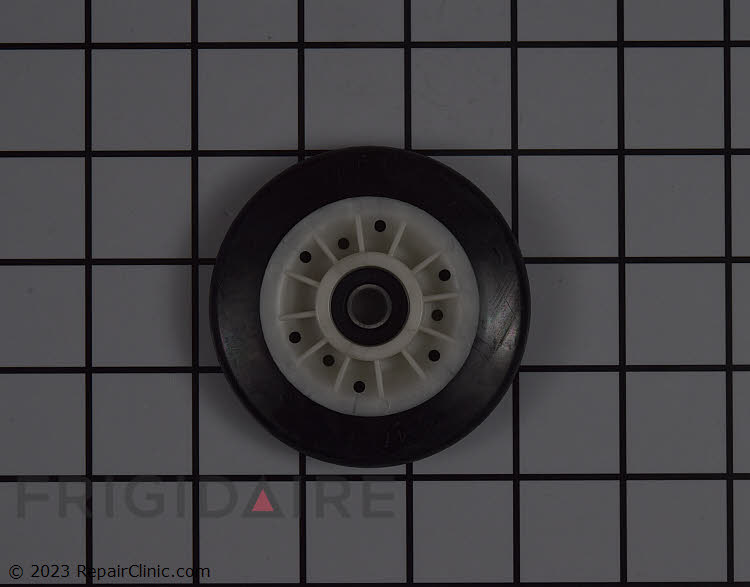

Drum support roller

Dryer thermal limiter (or thermal fuse). May be located on the blower housing or element. If the dryer overheats, the thermal fuse blows to cut off power to the dryer. If the thermal fuse has blown, the dryer won't start. The thermal fuse cannot be reset--if the fuse has blown, it must be replaced

Thermal Fuse (Non Resetable)

Door Catch

Dryer drum support roller assembly

Dryer heating element and housing assembly. If the dryer does not heat check for a blown themal fuse or thermal cut out. Heating elements will often have a break in the coil element if defective.

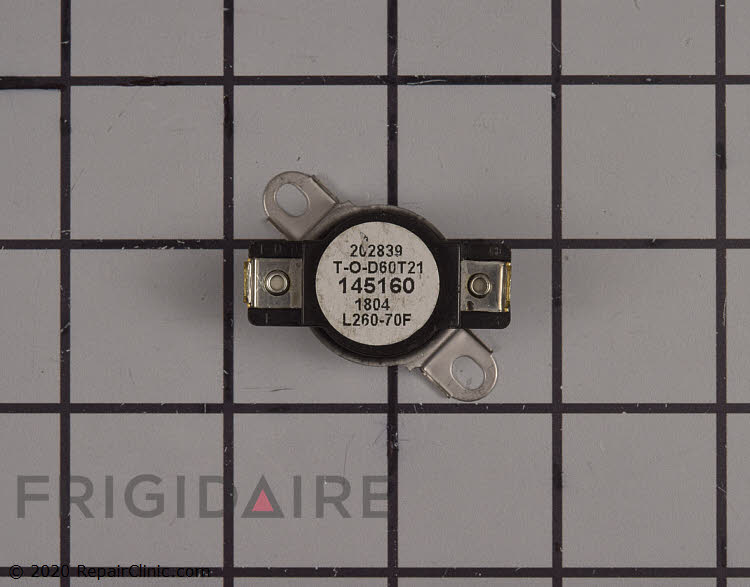

Dryer high-limit thermostat, L260-70F. If the dryer overheats, this high-limit thermostat will cut off the power to the heating element. If the high-limit thermostat has blown, the dryer won't heat.

Dryer heating element assembly. 5500 Watt 3 coil element with housing. If the dryer does not heat check for a blown themal fuse or thermal cut out. Heating elements will often have a break in the coil element if defective.
