Kenmore Range/Stove/Oven 790.90112013 Parts

Chrome drip bowl (also called a drip pan) for 8-inch top coil element. The drip pan sits underneath the heating element to collect drips or spills around the element

Chrome drip bowl (also called a drip pan) for 6-inch top coil element. The drip pan sits underneath the heating element to collect drips or spills around the element

Surface element control switch for the large surface element

Appliance light bulb, clear 120 Volt 40 Watt Regular Base

Surface element receptacle with wires, wire nuts, and heat-shrink tubing

Surface element control switch for the small surface element

Oven temperature sensor *May require cutting and splicing wire connector from old sensor onto new sensor with porcelain wire nuts

8 Inch electric coil surface element with looped terminals, 4 turns

Range/stove surface element (6-inch). If the surface element won't heat, either the surface element or the surface element switch may be defective. To determine if the surface element is defective, use a multimeter to test it for continuity.

Lens-light/lamp,indicator

Foot Assembly

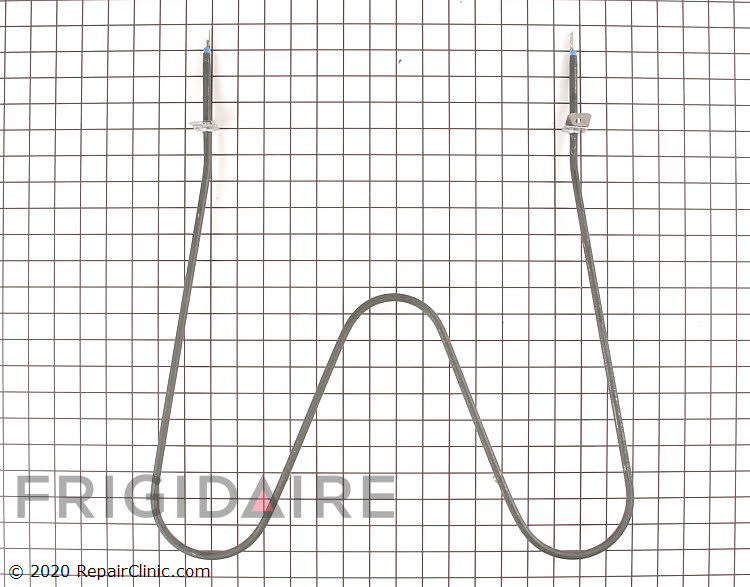

Oven bake element. If the oven won't heat, the bake element may have burned out. If the bake element has burned out, it will often be visibly damaged. Inspect the bake element for holes or blisters.

Terminal block for main power cord

Leveling leg

Oven anti-tip bracket kit. This bracket helps to secure the range and prevent it from tipping over.
