Name: Directional Switch
Brand: Whirlpool
SKU: i714888
Price: 63.69 USD
Availability: InStock


KitchenAid Trash Compactor Replace Directional Switch #777811

This video provides step-by-step repair instructions for replacing the directional switch on a KitchenAid trash compactor. The most common reason for replacing the directional switch is when the trash compactor won't stop. All of the information for this directional switch replacement video is applicable to the following brands: Whirlpool, KitchenAid, Kenmore, Jenn Air, Maytag, Roper Tools used: ¼ inch nutdriver, ¼ inch wrench

Trash Compactor

665.1350596

665.13612100

665.13612101

665.13613100

665.13613101

665.13619100

665.13619101

665.13633100

GC900QPPB6

GX900QPHB0

Trash compactor will not start

Top limit and directional switch for trash compactor. This directional switch interrupts the flow of current to the motor when the compacting ram reaches the top of the compactor.

When the compacting ram reaches the top of the compactor, the directional switch interrupts all current flow to the motor. However, if the directional switch fails, it may prevent the compactor from starting at all. To determine if the directional switch is defective, use a multimeter to test it for continuity. If the directional switch has no continuity when actuated or has shorted contacts, replace it.

Trash compactor is making loud noise

When the compacting ram reaches the top of the compactor, the directional switch interrupts all current flow to the motor. If the directional switch fails, the motor can continue to run after the ram reaches the top which can eventually result in the trash compactor becoming very noisy during operation. To determine if the directional switch is defective, use a multimeter to test it for continuity. If the directional switch has shorted contacts, replace it.

Trash compactor will not stop

When the compacting ram reaches the top of the compactor, the directional switch interrupts all current flow to the motor. If the directional switch fails, the motor can continue to run after the ram reaches the top. To determine if the directional switch is defective, use a multimeter to test it for continuity. If the directional switch has shorted contacts, replace it.

**We’re excited to be able to offer trade professionals like you substantial volume-based discounts. Our PRO pricing levels are based on your anticipated annual parts spend with us. If your actual monthly spending trends lower than anticipated, your discount may change.

Frigidaire Appliance Parts and Heating & Cooling Parts.

Sign up for your PRO account

Create your account for exclusive discounts and benefits, like:

Your One-Stop

Shop

Join Frigidaire Pro to unlock technician pricing, same-day shipping, dedicated support, and exclusive benefits tailored for repair professionals.

PRO users get exclusive discounts and benefits, like:

This account is not eligible, please contact your customer service representative for any questions.

Unlock technician pricing and exclusive Pro benefits at Frigidaire. Join free today.

Frigidaire Pro

Frigidaire Pro | Discounts & Benefits for Technicians

Your discounted pricing and other Pro benefits are now available.

Thank You for joining Frigidaire Pro!

Return parts & products within 30 days of placing your order.

Adhesives & Sealants Parts

Appliance Adhesive & Sealant Parts

Air Filters

Air Filters for Home

Appliance Cleaners

Appliance Cleaners for Sale

Dishrack Parts

Dishrack Replacement Parts

Dryer Vents

Dryer Venting Parts

Equipment Covers

OPE, HVAC & Appliance Part Covers

Fuel Treatments

Fuel System Treatments

Hardware & Fasteners

Hardware and Fasteners Parts

Kitchen Appliance Accessories

Kitchen Accessories Parts

Washer & Dryer Accessories

Dryer and Washer Accessories

Light Bulb Parts

Light Bulb Fixture Parts

Oil & Lubricants

Oil and Lubricant Parts

Paint & Supplies

Touch Up Paint & Supplies

Power Cords Parts

Power Cord Repair Parts

Safety Equipment Parts

Safety Equipment Spare Parts

Testing Equipment Parts

Testing Appliance, OPE & HVAC Parts

Specialty Tools Parts

Specialty Tool Parts for Sale

Vacuum Attachments

Vacuum Attachment Parts

Water Filters & System Parts

Water Filter System Parts

Water Treatment Parts

Water Treatment System Parts

Wire & Connector Parts

OPE, HVAC & Appliance Wire & Connector Parts

Lawn Care Supplies

Yard Care Supplies

Heating & Cooling Supplies

HVAC Supplies

CHANNELLOCK Tools Parts

CHANNELLOCK Replacement Tools

Gas Cans & Nozzles

Nozzles & Gas Cans for Sale

Maintenance Repair Kits

Maintenance Appliance Repair Kits

OPE cleaners & Filters Parts

Outdoor Power Equipment Cleaners & Filters

Power Tools Parts

Power Tool Replacement Parts

Appliances

Refrigerator

Dryer

Range/Stove/Oven

Washing Machine

Dishwasher

Washer/Dryer Combo

Microwave

Freezer

Oven/Microwave Combo

Ice Machine

Range Vent Hood

Vacuum Cleaner

Garbage Disposer

Dehumidifier

Bath Fan

Carpet Cleaner

Water Filtration System

Hot Water Dispenser

Lawn & Garden

Small Engine

Lawn Mower

Snowblower

String Trimmer

Pressure Washer

Chainsaw

Tiller

Leaf Blower

Wood Chipper

Hedge Trimmer

Generator

Log Splitter

Pole Pruner

Edger

Power Tools

Heating & Cooling

Furnace

Packaged Unit/RTU

Heat Pump

Central Air Conditioner

Air Conditioner

Air Handler

Water Heater

Humidifier

Unit Heater

Drill

Circular Saw

Miter Saw

Reciprocating Saw

Driver

Grinder

Jig Saw

Nailer & Stapler

Paint Sprayer

Planer & Joiner

Battery

Charger

Air Compressor

Wet/Dry Vacuum

Small Appliances

Blender

Whirlpool

Kenmore

Maytag

Jenn Air

KitchenAid

Roper

Gladiator

Directional Switch

Switch

Trash compactor not working? This video demonstrates how to test a directional switch on a trash compactor. The start switch, safety switch, door switch, on-off switch, and directional switch are commonly replaced parts for a trash compactor not starting. All of the information provided in this part testing video is applicable to the following brands: Amana, Broan, Electrolux, Frigidaire, GE, Hotpoint, Insinkerator, Jenn Air, Kenmore, KitchenAid, Magic Chef, Maytag, Montgomery Ward, Roper, Tappan

Trash Compactor Not Working? Directional Switch Test

Trash compactor won't start? This video provides information on how to troubleshoot a trash compactor and the most likely defective parts associated with this problem. Commonly replaced trash compactor parts: Leveling Leg Door Latch Drive Chain Drive Gear Motor Start Switch Directional Switch The information provided in this trash compactor troubleshooting video is applicable to all trash compactor brands: Amana, Broan, GE, Whirlpool, Frigidaire, Hotpoint, Insinkerator, Jenn Air, Kenmore, Magic Chef, Maytag, Roper, Tappan

Top Reasons Trash Compactor Won't Start — Trash Compactor Troubleshooting

Trash compactor won't stop? This video provides information on how to troubleshoot a trash compactor and the most likely defective parts associated with this problem. Commonly replaced trash compactor parts: Leveling Leg Door Latch Drive Chain Drive Gear Motor Start Switch Directional Switch The information provided in this trash compactor troubleshooting video is applicable to all trash compactor brands: Amana, Broan, GE, Whirlpool, Frigidaire, Hotpoint, Insinkerator, Jenn Air, Kenmore, Magic Chef, Maytag, Roper, Tappan

Top Reasons Trash Compactor Won't Stop  — Trash Compactor Troubleshooting

Trash compactor drawer won't open? This video provides information on how to troubleshoot a trash compactor and the most likely defective parts associated with this problem. Commonly replaced trash compactor parts: Leveling Leg Door Latch Drive Chain Drive Gear Motor Start Switch Directional Switch The information provided in this trash compactor troubleshooting video is applicable to all trash compactor brands: Amana, Broan, GE, Whirlpool, Frigidaire, Hotpoint, Insinkerator, Jenn Air, Kenmore, Magic Chef, Maytag, Roper, Tappan

Top Reasons Trash Compactor Drawer Won't Open  — Trash Compactor Troubleshooting

Trash compactor making a loud noise? This video provides information on how to troubleshoot a trash compactor and the most likely defective parts associated with this problem. Commonly replaced trash compactor parts: Leveling Leg Door Latch Drive Chain Drive Gear Motor Start Switch Directional Switch The information provided in this trash compactor troubleshooting video is applicable to all trash compactor brands: Amana, Broan, GE, Whirlpool, Frigidaire, Hotpoint, Insinkerator, Jenn Air, Kenmore, Magic Chef, Maytag, Roper, Tappan

Top Reasons Trash Compactor Making A Loud Noise  — Trash Compactor Troubleshooting

Trash Compactor Not Working? Directional Switch Test, Repair

Trash compactor making loud noises, not stopping, or not opening? This video provides information on how a trash compactor works and offers troubleshooting tips to assist you in diagnosing and repair. Here is a list of the most commonly replaced parts associated with each trash compactor symptom: Trash compactor will not start: start switch, safety switch, on/off switch, door switch Trash compactor making loud noises: trunnion nut, drive gear, gear box, drive chain, drive motor Trash compactor will not stop: directional switch, start switch, drive motor, on/off switch trash compactor door will not open: Door latch, power nut, drive chain, trunnion nut, foot pedal, door or lid latch assembly All of the information provided in this trash compactor troubleshooting video is applicable to the following brands: Amana, Broan, Electrolux, Frigidaire, GE, Hotpoint, Insinkerator, JennAir, Kenmore, KitchenAid, Magic Chef, Maytag, Montgomery Wards, Roper, Tappan, Thermador, Universal, Whirlpool

How Does a Trash Compactor Work? - Appliance Repair Tips

Repairing a KitchenAid trash compactor? This video demonstrates the proper and safe way to disassemble a trash compactor and how to access parts that may need to be tested and/or replaced. Here is a list of the most common trash compactor problems: Trash compactor drawer will not open Trash compactor is making loud noise Trash compactor will not start Trash compactor will not stop Tools needed: multi screwdriver, Phillips head bit, 19mm socket, rubber mallet, 10mm socket, needle nose pliers, flat head bit

KitchenAid Trash Compactor Disassembly, Repair Help

This video provides step-by-step repair instructions for replacing the drive gear on a KitchenAid trash compactor. The most common reason for replacing the drive gear is when the trash compactor is making loud noise. All of the information for this drive gear replacement video is applicable to the following brands: Whirlpool, Kenmore, KitchenAid, Jenn Air, Maytag, Roper, Magic Chef Tools used: multi-screwdriver, ¼ inch nutdrive bit, flat head bit, 3/8 inch socket, hammer and punch

KitchenAid Trash Compactor Drive Gear Kit Replacement #882699

This video provides step-by-step repair instructions for replacing the ram stops on a KitchenAid trash compactor. The most common reason for replacing the ram stops is when they are damaged. All of the information for this ram stop replacement video is applicable to the following brands: Whirlpool, KitchenAid, Kenmore, Jenn Air, Maytag Tools used: multi-screwdriver, Phillips head bit, needle-nose pliers

KitchenAid Trash Compactor Ram Stop Replacement #9870037

This video provides step-by-step instructions for replacing a power screw nut (or trunnion nut) on KitchenAid trash compactors. The most common reason for replacing a power screw nut is if it is worn out, causing the appliance to make loud noises or not operate properly. All of the information in this power screw nut replacement video is applicable to the following brands: Whirlpool, KitchenAid, Kenmore, Jenn Air, Maytag Tools used: multi-screwdriver, 1/4” nutdriver bit, flat-head bit

KitchenAid Trash Compactor Replace Power Screw Nut #9870163

This video provides step-by-step repair instructions for replacing the start switch on a KitchenAid trash compactor. The most common reasons for replacing the start switch are when the trash compactor runs while the knob is in the “off” position or won’t run when the knob is moved to the “start” position. All of the information for this start switch replacement video is applicable to the following brands: Kenmore, KitchenAid, Whirlpool, Jenn Air, Magic Chef, Maytag, Roper Tools used: multi-screwdriver, ¼ inch nutdriver bit, needle-nose pliers

KitchenAid Trash Compactor Start Switch Replacement #675382

This video provides step-by-step instructions for replacing the drive motor on KitchenAid trash compactors. The most common reasons for replacing the motor are if the compactor is making a humming noise, will not start, or will not stop, and the problem is not with the safety or start switches, the gears, the chain, or the power screws. All of the information in this drive motor replacement video is applicable to the following brands: Whirlpool, KitchenAid, Kenmore, Maytag, Jenn Air Tools used: multi-screwdriver, 1/4” nutdriver bit, 3/8” socket, flat-head bit

KitchenAid Trash Compactor Drive Motor Replacement #W10318887

This video provides step-by-step instructions for replacing the foot pedal on KitchenAid trash compactors. The most common reason for replacing the foot pedal is when it is damaged, causing it to stick or the drawer to not release when the pedal is depressed. All of the information in this foot pedal replacement video is applicable to the following brands: KitchenAid, Jenn Air, Maytag Tools used: multi-screwdriver, 1/4” nutdriver bit

KitchenAid Trash Compactor Foot Pedal Replacement #9871989B

This video provides step-by-step instructions for replacing the drawer latch on KitchenAid trash compactors. The most common reason for replacing the drawer latch is if any part of it is broken. All of the information in this door latch replacement video is applicable to the following brands: Whirlpool, Kenmore, KitchenAid, Jenn Air, Maytag, Magic Chef, Roper Tools used: multi-screwdriver, 1/4” nutdriver bit

KitchenAid Trash Compactor Drawer Latch Replacement #675379

This video provides step-by-step repair instructions for replacing the drive gear sprocket on a KitchenAid trash compactor. The most common reason for replacing the sprocket is when the trash compactor is making loud noise. All of the information for this sprocket replacement video is applicable to the following brands: Whirlpool, Kenmore, KitchenAid, Jenn Air, Maytag, Roper Tools used: multi-screwdriver, ¼ inch nutdriver bit, 15/16 socket, crescent wrench, flat head bit

KitchenAid Trash Compactor Drive Gear Replacement #675370

This video provides step-by-step repair instructions for replacing the container slide rollers on a KitchenAid trash compactor. The most common reason for replacing the slide rollers is when the container doesn’t roll smoothly. All of the information for this container roller replacement video is applicable to the following brands: Whirlpool, Kenmore, KitchenAid, Jenn Air, Maytag, Magic Chef, Roper Tools used: multi-screwdriver, ¼ inch hex head bit, 9/16 socket and wrench

KitchenAid Trash Compactor Container Roller Kit #882688

This video provides step-by-step instructions for replacing a drawer switch on Whirlpool trash compactors. The most common reason for replacing a drawer switch is if the compactor will not start even with the drawer and side panel in place and testing proves the switch is faulty. All of the information in this drawer switch replacement video is applicable to the following brands: Whirlpool, KitchenAid, Jenn Air, Kenmore, Maytag Tools used: multi-screwdriver, 1/4” nutdriver, needle-nose pliers

KitchenAid Trash Compactor Drawer Switch Replacement #9871829

This video provides step-by-step instructions for replacing a container roller on KitchenAid trash compactors. The most common reason for replacing a container roller is if the trash compactor container does not slide smoothly in and out of the cabinet. All of the information in this roller replacement video is applicable to the following brands: Whirlpool, Kenmore, KitchenAid, Jenn Air, Maytag, Roper Tools used: 9/16” socket

KitchenAid Trash Compactor Replace Container Roller #9871602

This video provides step-by-step instructions for replacing the start knob on KitchenAid trash compactors. The most common reason for replacing the knob is if it is lost, perhaps after having been removed to childproof the appliance. All of the information in this start knob replacement video is applicable to the following brands: KitchenAid, Jenn Air, Maytag, Whirlpool Tools used: multi-screwdriver, Phillips head bit, needle-nose pliers

KitchenAid Trash Compactor Start Knob Replacement #9871800

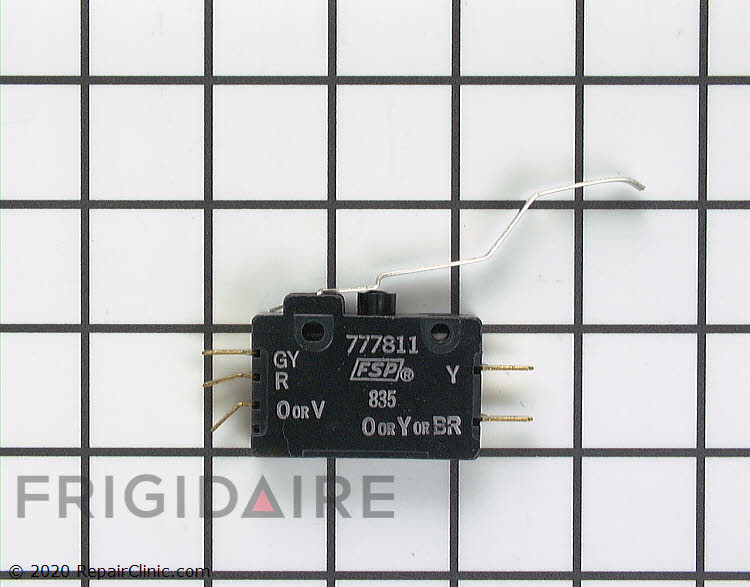

WP777811 Trash Compactor Directional Switch
